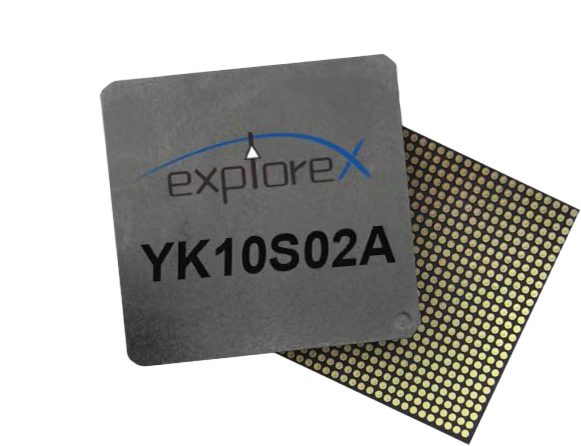

ISP (Image Signal Processor) chip with built-in intelligent algorithms, with full-chain autonomy and control over the manufacturing process and tape-out flow.

Chip Characteristics

Core: RISC-V Processor
Memory: Supports external FLASH/MRAM
Image Input: LVDS interface, supporting both linear and area array sensors
Image Output: TLK2711 / Camera Link
Image Processing Functions: Image cropping, adaptive dark level correction, pixel correction, bad pixel detection and correction, noise reduction, configurable filtering, and image enhancement
Other Interfaces: JTAG/SPI/MRAM interface/sensor timing interface/multi-chip interconnection interface/RS485/GPIO
Radiation Hardening Performance:
Total Ionizing Dose (TID): > 100 krad(Si)
Single Event Upset (SEU) Immunity: > 37 MeV·cm²/mg
Single Event Latchup (SEL) Immunity: > 75 MeV·cm²/mg

Operating Temperature Range: -55°C ~ 125°C
